Bioreactor Magnetic Stir System Base (5 mL)


Brand: ABLE Biott

Provides consistent, heat-free stirring of 5 mL disposable bioreactors.


Product name Product code Pack size Price (USD) Price (GBP) Price (EUR)
Bioreactor Magnetic Stir System Base (5 mL) ABBWBP05N0S-6 1 unit $ 4,120.00 £ 2,999.00 € 3,499.00

USA Store

Note: prices shown do not include shipping and handling charges.

Product Information

ABLE Bioreactor Magnetic Stir System Base 30 mL and 100 mL

This unit consists of:

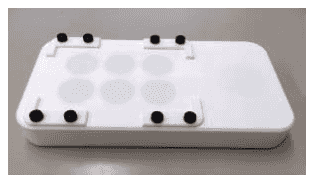

  • Six position stir base for 5 mL vessels

This Stir System Base works with the Able Bioreactor System Controller and Motor (Cat. No. ABBWDW-1013)  to provide consistent, heat-free stirring of 5 mL disposable bioreactors.

ABLE Biott Bioreactor System provides cost-effective, lab-scale iPS cell spheroid culture

Growth of iPS cells in spheroid suspension culture (3D) closely resemble embryoid body structures naturally formed by embryonic stem cells. This 3D growth format offers improved yield, viability and high efficiency for the expansion of human iPS stem cells and differentiation in a cost-effective format. The ABLE 3D Magnetic Stir and Disposable Bioreactor System enables stem cell researchers to utilize a disposable bioreactor vessels for cell culturing or production of up to 5 × 106 cells per 5 mL vessel, equivalent to approximately one 10 cm plates.

The ABLE Bioreactor System

The ABLE 3D System has only two components; a six-channel magnetic stirrer platform (left), an electrical controller unit (right). The system is placed inside a CO2 cell culture incubator allowing the temperature, humidity and gas controls to be passively managed. The controller unit attaches magnetically to the outside of the incubator and the two system components are connected via a cable (not shown).

Able Bioreactor System Controller and Motor (Cat. No. ABBWDW-1013)


Able Bioreactor Magnetic Stir System Base (30 mL, 100 mL; Cat. No. ABBWBP03N0S-6)

Bioreactor system features

  • Stir-plate protected by a chemically resistant acrylic coating
  • Each stir-plate platform can accommodate up to six culture vessels of appropriate size
  • Low profile design and low-heat generation for use directly in cell culture CO2 incubators
  • Precisely controlled adjustable rotation speed for optimal performance
  • Optimally designed for iPS cell culture in 3D spheroid format

ABLE company name and logo and Biott brand are the property of ABLE Corp., Japan.

Product Name: ABLE Magnetic Stirrer System Base for 5 mL Bioreactors

Catalog Number: ABBWBP05N0S-6 (Able Cat No. BWS-S005N0S-6A)

For Vessel Size: 5 mL vessel

Dimensions: W120 x D230 x H35 mm without motor

Drive System:

  • Belt Drive (Motor to stir plate)
  • Magnet drive (Stir plate to flask)

Notice To Purchaser: REPROCELL is a licensed distributor of ABLE Biott cell culture bioreactor products in the USA and other markets, excluding Japan

Manufacturer: ABLE Corporation (Japan)

Intended Use: This product is for research use only, not for therapeutic or diagnostic purposes. Not for resale or for commercial purposes without permission from REPROCELL
