Bioreactor System Controller and Motor

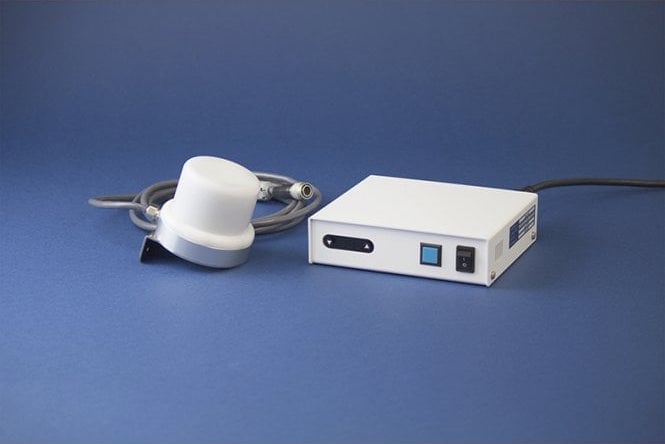

ABLE Bioreactor Magnetic Stir System Controller and Motor

This unit consists of:

• Controller with built-in alarm
• Motor
• Power cable

This controller works with the Able Bioreactor Magnetic Stir System Base (5 mL; Cat. No. ABBWBP05N0S-6) or the Able Bioreactor Stir System Base (30 mL, 100 mL: Cat. No. ABBWBP03N0S-6) to provide consistent, heat-free stirring of disposable bioreactors.

ABLE Biott Bioreactor System provides cost-effective, lab-scale iPS cell spheroid culture

Growth of iPS cells in spheroid suspension culture (3D) closely resemble embryoid body structures naturally formed by embryonic stem cells. This 3D growth format offers improved yield, viability and high efficiency for the expansion of human iPS stem cells and differentiation in a cost-effective format. The ABLE 3D Magnetic Stir and Disposable Bioreactor System enables stem cell researchers to utilize a disposable bioreactor vessels for cell culturing or production of up to 5 × 10⁷ cells per 30 mL vessel, equivalent to approximately ten 10 cm plates.

The ABLE Bioreactor System

The ABLE 3D System has only two components; a six-channel magnetic stirrer platform (left), an electrical controller unit (right). The system is placed inside a CO₂ cell culture incubator allowing the temperature, humidity and gas controls to be passively managed. The controller unit attaches magnetically to the outside of the incubator and the two system components are connected via a cable (not shown).

Able Bioreactor System Controller and Motor (Cat. No. ABBWDW-1013)



Able Bioreactor Magnetic Stir System Base (30 mL, 100 mL; Cat. No. ABBWBP03N0S-6)



Bioreactor system features

• Stir-plate protected by a chemically resistant acrylic coating
• Each stir-plate platform can accommodate up to six culture vessels of appropriate size
• Low profile design and low-heat generation for use directly in cell culture CO₂ incubators
• Precisely controlled adjustable rotation speed for optimal performance
• Optimally designed for iPS cell culture in 3D spheroid format

ABLE company name and logo and Biott brand are the property of ABLE Corp., Japan.

Product Name: Able Bioreactor System Controller and Motor

Catalog Number: ABBWDW-1013 (Able Cat. No. DW-1013)

Configuration: Controller, motor, power cable

Dimensions:

• Controller: 132 x 150 x 41 mm (W x D X H)
• Motor: 58 x 90 x 84 mm (W x D x H)

Stirring Speed Range: 5 to 120 rpm

Power: 100 to 240 V, 50 to 60 Hz

Power connector: US Style

Intended Use: This product is for research use only, not for therapeutic or diagnostic purposes. Not for resale or for commercial purposes without permission from REPROCELL.

Product Sheets

• ABLE product sheet

Operating Instructions

• Operating Instructions for ABLE 3D Magnetic Stir and Disposable Bioreactor System
