Protocol:

Development of Full Thickness Human Skin Model Using Alvetex™ Scaffold Technology

● Download this protocol as a PDF (2.1 MB)

1. Introduction

This protocol describes the ability and advantages of using Alvetex Scaffold technology to support dermal fibroblast growth within its structure, and the co-culture of primary human keratinocytes to form a terminally differentiated, cornified human skin equivalent.

2. Method

  1. 12 well Alvetex Scaffold inserts (AVP005) were used in 6-well plates (Figure 1). The inserts were washed twice with media. Please refer to website protocols for preparation of Alvetex Scaffold for cell culture (see Alvetex Protocols).

PR-ALVETEX-SCAFFOLD-D028_fig-01

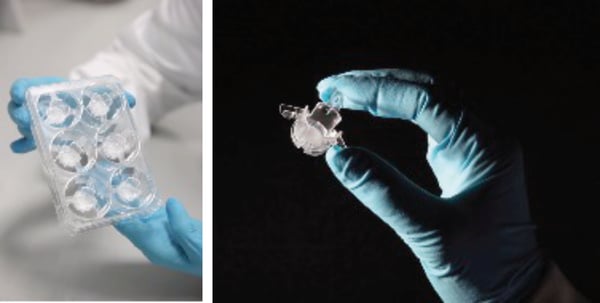

Figure 1. Alvetex Scaffold in 12-well insert format used in a 6-well plate.

Note: Refer to Table 1 below for all media formulations.

  1. Primary fibroblasts isolated from human foreskin (P5) were incubated on the insert for 1 week. 1 million fibroblasts were seeded per insert in 100 μl of culture medium 1 and incubated for 1 hr at 37 °C with 5 % CO2. After 1 hr the insert was submerged in culture medium 1 (10.5 mL) and the fibroblasts were cultured for 1 week changing culture medium 1 every other day. (Figure 2A).
  2. After 1 week of fibroblast culture, culture medium 1 was removed and primary human keratinocytes (500,000 cells) isolated from foreskin (P4) were seeded on to the insert in 100 μL of culture medium 2 and incubated for 1hr at 37 °C with 5% CO2.
  3. After 1 hr the inner chamber of the well insert was filled with culture medium 2 (up to 0.5 mL) and the outer well compartment (i.e. underneath the insert) was filled with culture medium 1 (up to 6.4 mL). These volumes are approximate and aimed at achieving ‘above and below separately’ feeding regime (Figure 2B). Renew culture medium 2 inside the insert daily to ensure sufficient nutrient provision and prevent drying.
  4. After 3 days all culture medium from step 4 was removed, and the cultures were maintained at the air/liquid interface with culture medium 3 just touching the bottom of the well insert (4 mL from beneath the insert only, (Figure 2C)). Culture medium 3 was changed every other day. The experiment was stopped after 1 month at the air/liquid interface and cultures were placed in the appropriate fixative for analysis (see Alvetex Protocols).
  5. Cultures were then processed for histological analysis (see Alvetex Protocols).
PR-ALVETEX-SCAFFOLD-D028_fig-02a PR-ALVETEX-SCAFFOLD-D028_fig-02b PR-ALVETEX-SCAFFOLD-D028_fig-02c

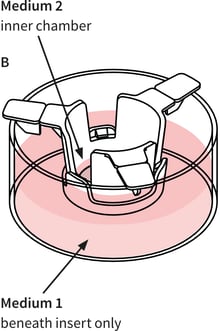

Figure 2: Skin culture set-up showing all media levels and types in relation to the well inserts. Note in diagram (A.) that medium 1 is common inside and outside the well insert, connected via the window in the well insert wall. In (B.), media 1 and 2 are not connected through the window. In (C.) the medium is in the lower chamber only in contact with the bottom of the Alvetex Scaffold membrane.

  Basal Medium Supplements
Culture Medium 1
(Fibroblast medium)
DMEM (High glucose)
(PAA, E15-810)
  • 10% v/v FBS
  • 100 U/mL penicillin/ streptomycin
Culture Medium 2 (Keratinocyte proliferation medium, submerged conditions) Epilife (Invitrogen (Thermo Fisher), M-EPI-500-CA)
  • Human keratinocyte growth supplement (HKGS, Epilife, S-001-5)
  • 100 U/mL penicillin/ streptomycin
Culture Medium 3 (Keratinocyte differentiation medium, feeding from beneath insert only) DMEM/ Ham’s F-12 (1:1)
(PAA, E15-813)
  • Cholera toxin, (Sigma, C8052-2mg), final concentration 10–10 M
  • Epidermal Growth Factor (Mouse), (Serotec, EGF-1), final concentration 10 ng/mL
  • Hydrocortisone, (Sigma, H4881), final concentration 0.4 μg/mL
  • Insulin (Sigma, I5500), final concentration 5 μg/mL
  • Transferrin (Sigma, T2252-500mg), final concentration 5 μg/mL
  • 3,3ʹ,5-Triiodo-Lthyronine sodium salt, (Sigma T6397-100mg), final concentration 2 × 10–11 M
  • 10% v/v FBS
  • 100 U/mL penicillin/ streptomycin

Table 1: Basal media and supplements

3. Sample data

PR-ALVETEX-SCAFFOLD-D028_fig-03

Figure 3. Histological analysis of skin equivalents developed using Alvetex Scaffold in 12-well insert format (AVP005) presented in a 6-well plate. (Scale bars: 50 µm).

After one month culture at the air interface, an organised skin construct formed which showed several cornified layers lifting off the top surface of the epidermis-like zone. Good dermal fibroblast growth was also observed within the Alvetex Scaffold disc. Further functional work is required to assess the expression patterns of specific keratin isoforms, as well as basement membrane formation.

4. Acknowledgement

REPROCELL (formerly, Reinnervate Ltd) would like to acknowledge the contribution of Dr Supatra Marsh (Queen Mary University of London, UK) in the development of this skin application for Alvetex technology.
